What Are Mechanical Seal Rings and Faces, and Why Are They Important?

In industrial systems, maintaining proper sealing is crucial to ensure efficiency and prevent leakage of fluids. Whether in pumps, compressors, or mixers, mechanical seals play a significant role in protecting machinery from contamination, ensuring smooth operation, and extending the lifespan of equipment. A vital component of these seals are the mechanical seal rings or faces. But what exactly are they, and why are they so important for industrial machinery?

What Are Mechanical Seal Rings and Faces?

Mechanical seals are devices used to prevent leakage between rotating and stationary parts, typically in equipment like pumps, mixers, and valves. At the heart of these seals are the seal rings or seal faces, which create a barrier to contain the fluid within the machinery.

1. Mechanical Seal Ring:

  The seal ring is a circular component that acts as the primary sealing surface in a mechanical seal. It is typically made from materials like carbon, ceramic, or tungsten carbide, and is designed to resist wear and corrosion under extreme pressure and temperature conditions. The material choice for the seal ring depends on the specific application, including factors like the type of fluid being contained and the operating environment.

2. Mechanical Seal Face:

  The seal face is one of the two mating surfaces that come into contact and work to form a barrier against leakage. It is typically paired with a corresponding seal face made from another material, ensuring that the two surfaces work together to create a tight seal. The friction between the two faces is controlled to prevent excessive wear while maintaining a reliable seal.

Why Are Mechanical Seal Rings and Faces So Important?

1. Prevent Fluid Leakage

  The primary function of mechanical seal rings and faces is to prevent leakage of fluids, which can be hazardous or cause damage to machinery. By creating a secure barrier, they help to maintain the integrity of systems containing valuable or dangerous fluids, such as chemicals, oils, or gases. Any leakage can lead to environmental damage, equipment failure, or safety hazards.

2. Reduce Wear and Tear

  Mechanical seals are subject to constant friction and wear as the rotating and stationary faces come into contact. To ensure that this friction doesn't cause significant damage to the system, high-quality mechanical seal rings and faces are designed to withstand harsh conditions. These components help to reduce wear, which in turn minimizes the need for repairs and replacements.

3. Improve Efficiency

  By preventing leakage and reducing friction, mechanical seal rings and faces contribute to the overall efficiency of a system. Without proper sealing, fluids could escape, causing energy loss and decreased performance. Additionally, effective sealing helps to maintain the pressure and flow within the system, optimizing its function.

4. Extend Equipment Life

  High-quality mechanical seal rings and faces can significantly extend the lifespan of machinery. Because they reduce leakage, wear, and heat generation, these components contribute to the longevity of the system. This is especially important for industries that rely on expensive equipment, as it can lead to reduced downtime and lower maintenance costs.

What Materials Are Used for Mechanical Seal Rings and Faces?

The materials used for mechanical seal rings and faces play a crucial role in their performance. Depending on the application, seal rings and faces can be made from a variety of materials:

1. Carbon:

  Carbon is one of the most commonly used materials for seal rings, particularly in applications where the fluid being sealed is not too aggressive. It is chosen for its self-lubricating properties and ability to withstand high temperatures and pressures.

2. Ceramic:

  Ceramic is another popular material for mechanical seal faces due to its hardness and wear resistance. It is often used in high-speed or high-pressure applications where other materials might not hold up as well.

3. Tungsten Carbide:

  Tungsten carbide is known for its hardness and resistance to wear. It is commonly used for mechanical seal faces in harsh environments, such as those involving corrosive or abrasive fluids. Its durability ensures long-lasting performance even in extreme conditions.

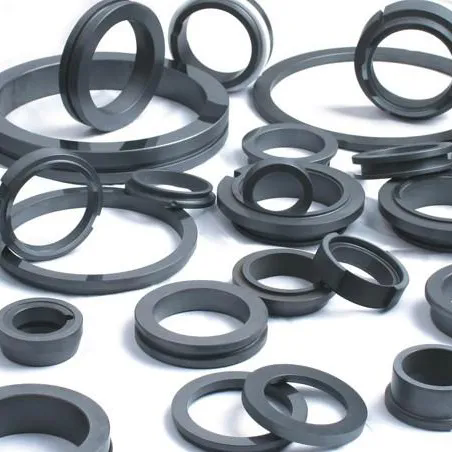

4. Silicon Carbide:

  Silicon carbide is another material known for its hardness and resistance to wear. It is often used in industries dealing with aggressive fluids or chemicals, offering excellent sealing properties under high-stress conditions.

How Do Mechanical Seal Rings and Faces Work Together?

Mechanical seal rings and faces work in tandem to create a tight seal. The stationary seal ring is typically mounted on the housing, while the rotating seal face is attached to the shaft or rotor. As the shaft rotates, the two faces come into contact and form a sealing surface. This contact prevents fluid from leaking past the seal.

The friction between the faces is carefully controlled through the use of a thin layer of liquid film, which is maintained by a constant supply of lubrication. This lubrication helps reduce wear and keeps the seal faces from overheating, ensuring that they continue to perform effectively.

How Do You Choose the Right Mechanical Seal Ring or Face?

Choosing the right mechanical seal ring or face depends on several factors, including:

- Operating Environment: Consider the temperature, pressure, and type of fluid being sealed. For example, if you’re working with high-temperature fluids or aggressive chemicals, materials like ceramic or tungsten carbide may be the best choice.

- System Design: Ensure that the mechanical seal is compatible with the design of your equipment, including the shaft size and mounting arrangement.

- Performance Requirements: Depending on the application, you may need a seal that can handle high speeds, abrasive particles, or other challenging conditions.

- Maintenance Needs: Opt for materials and designs that are easy to maintain and replace when necessary to minimize downtime and repair costs.

Conclusion: Why Do Mechanical Seal Rings and Faces Matter?

Mechanical seal rings and faces are essential components in industrial sealing systems, providing protection against fluid leakage, reducing wear, improving efficiency, and extending the lifespan of machinery. By understanding the importance of these components and choosing the right materials for your application, you can ensure the optimal performance of your equipment, reduce maintenance costs, and avoid potential failures.
