How safety light curtains typically work

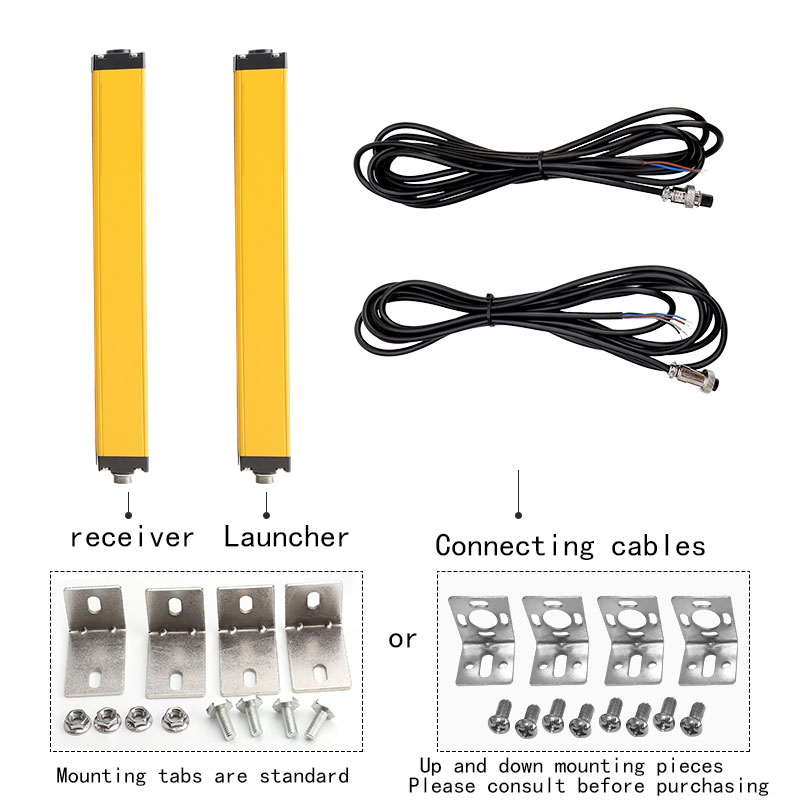

A safety light curtain, also known as a light barrier or opto-electronic safety device, is an advanced safety system used in industrial environments to safeguard personnel and equipment around hazardous machinery or processes. Here's how it works and its key features:

1. Functionality: A safety light curtain creates an invisible array of infrared light beams across an area of potential hazard, such as the entrance to a machine or robot workspace. When any of these light beams are interrupted by an object, the light curtain detects the intrusion and triggers a safety response to stop or prevent hazardous motion.

2. Detection Zones: Safety light curtains can cover large areas with multiple detection zones, allowing them to protect workers from various angles and heights. The configuration of these zones can be adjusted to suit the specific requirements of the application.

3. Response Time: Safety light curtains have rapid response times, typically within milliseconds, to detect any intrusion into the protected area. This ensures quick and effective safety measures are activated to prevent accidents.

4. Integration with Machinery: Safety light curtains can be integrated with machinery control systems, such as programmable logic controllers (PLCs), to immediately stop hazardous processes or activate safety measures when an intrusion is detected. This integration ensures seamless coordination between safety systems and equipment operation.

5. Configurability: Modern safety light curtains often feature configurable parameters such as beam spacing, detection height, and response sensitivity. This flexibility allows them to be tailored to the specific requirements of different applications and environments.

6. Reliability: Safety light curtains are designed to be highly reliable and resistant to environmental factors such as dust, dirt, and vibrations commonly found in industrial settings. They are built to withstand harsh conditions and maintain consistent performance over time.

7. Safety Standards Compliance: Safety light curtains must adhere to industry safety standards and regulations, such as ISO 13849 and IEC 61496, to ensure they provide adequate protection for personnel and meet legal requirements for workplace safety.

8. User Interface: Some safety light curtains come with user-friendly interfaces for configuration, monitoring, and diagnostics. These interfaces may include displays, status indicators, and diagnostic tools to simplify setup and troubleshooting.

Overall, safety light curtains are essential safety devices in industrial automation, providing effective protection for workers and equipment around hazardous machinery and processes. Their advanced detection capabilities, rapid response times, and configurability make them indispensable components of modern industrial safety systems.
