How Does a Worm Screw Jack Improve Industrial Lifting Efficiency?
2025-09-02
In the field of industrial lifting, precise motion control and high load-bearing capacity are critical for efficiency and safety. A worm screw jack stands out as one of the most reliable and widely used mechanical devices in manufacturing, automotive, construction, and heavy equipment sectors.
What Is a Worm Screw Jack and How Does It Work?

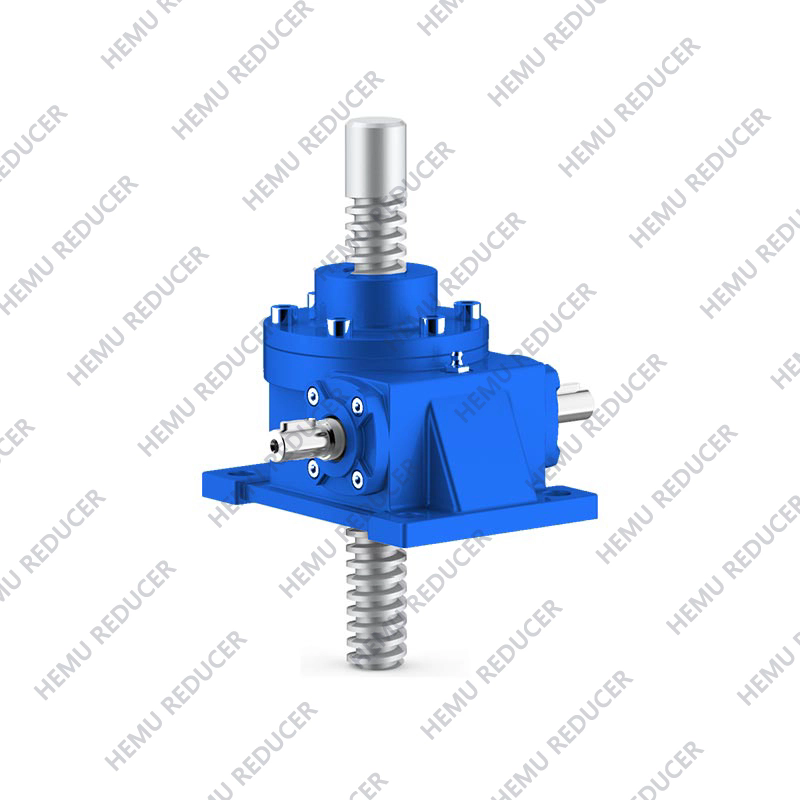

A worm screw jack, also known as a worm gear screw jack, is a mechanical device designed to convert rotational motion into linear motion, enabling efficient lifting, lowering, pushing, or pulling of heavy loads. Its core mechanism involves a worm gear and a lead screw, which together provide self-locking capabilities, precise positioning, and high load capacity.
Working Principle
-
The worm shaft is connected to a motor, handle, or other power source.
-
As the worm rotates, it engages with the worm gear, which is directly connected to a screw.
-
The screw then moves linearly, raising or lowering the load depending on the rotation direction.
-
Due to the high friction between the worm and gear teeth, worm screw jacks are typically self-locking, meaning they hold loads in place without additional braking systems.
Applications
Worm screw jacks are widely used in:
-
Industrial assembly lines
-
Automated production equipment
-
Stage and platform lifting
-
Vehicle maintenance systems
-
Aerospace and defense equipment
-
Renewable energy systems like solar panel positioning
By combining compact size, high performance, and safety, worm screw jacks are ideal for modern industries requiring precise, synchronized, and reliable lifting solutions.
Key Specifications and Technical Parameters
When choosing a worm screw jack, selecting the right specifications is essential to match your application’s requirements. Below is a detailed list of common technical parameters:
| Parameter | Description |
|---|---|
| Load Capacity | Ranges from 2 kN to 2000 kN, suitable for light to heavy-duty applications |
| Lift Range | Customizable stroke lengths from 50 mm to 6000 mm |
| Screw Types | Trapezoidal screw or ball screw depending on precision needs |
| Gear Ratio | Standard ratios: 6:1, 24:1, 36:1, and custom options |
| Efficiency | Ranges between 30% and 60%, depending on design |
| Material | High-strength steel or aluminum alloy for durability |
| Operating Speed | Adjustable from 1 mm/s to 30 mm/s depending on the motor and gear ratio |
| Protection Grade | IP54, IP65, or higher for dustproof and waterproof requirements |
| Temperature Range | Operates between -30°C and +120°C |
3. Advantages of Using Worm Screw Jacks
The widespread adoption of worm screw jacks in industrial lifting systems is largely due to their unique benefits:
a) High Load Capacity
Their robust construction allows worm screw jacks to handle extremely heavy loads while maintaining stability and performance.
b) Self-Locking Mechanism
Unlike other lifting mechanisms, worm screw jacks are inherently self-locking, making them safe for static load holding without additional brakes.
c) Precision and Control
Engineers prefer worm screw jacks for applications requiring precise positioning and fine motion control, especially when combined with digital encoders or sensors.
d) Durability and Low Maintenance
Made from high-strength steel and wear-resistant alloys, worm screw jacks have a long operational lifespan with minimal lubrication requirements.
e) Versatile Configurations
Available in upright, inverted, rotating screw, and translating screw designs, they can be easily customized for different industries and tasks.
f) Cost-Effective Automation
Compared with hydraulic lifting systems, worm screw jacks offer a lower cost of installation and maintenance, making them a popular choice in automation projects.
Worm Screw Jack FAQs
Q1: How do I select the right worm screw jack for my application?
Answer: Start by defining your load capacity, stroke length, and lifting speed requirements. Then, consider environmental factors such as operating temperature, exposure to dust or moisture, and safety constraints. If synchronized lifting is required, choose models compatible with multi-jack arrangements.
Q2: What is the maintenance schedule for a worm screw jack?
Answer: Worm screw jacks are low-maintenance devices, but regular inspections are recommended:
-
Lubrication: Apply fresh grease every 500 to 1000 operating hours depending on load conditions.
-
Alignment Check: Inspect gear alignment periodically to avoid uneven wear.
-
Seal Integrity: Check for oil leaks and replace seals if necessary.
-
Thread Wear: Examine screws and nuts regularly to ensure precision is maintained.
Elevate Your Lifting Solutions with Hemu
A worm screw jack is an indispensable component in modern industrial lifting applications, offering precision, reliability, and safety. From automotive assembly lines to renewable energy systems, its versatility makes it an ideal solution for a wide range of industries.
At Hemu, we specialize in designing and manufacturing high-performance worm screw jacks tailored to your project’s unique needs. Our products combine advanced engineering, durable materials, and strict quality control to deliver unmatched efficiency and reliability.
If you're looking to upgrade your lifting systems or require a customized solution, Hemu is ready to support your next project.
Contact us today to learn more about our products and receive a tailored consultation from our engineering team.
