Functions of Hydraulic Cylinders

Industrial engineering hydraulic cylinders are essential components in various industrial applications, providing controlled linear motion through the use of hydraulic fluid pressure. Here’s an overview of their functions, types, applications, and considerations:

Functions of Hydraulic Cylinders:

1. Linear Motion: Convert hydraulic pressure into linear force and motion, used to move heavy loads or perform mechanical tasks.

2. Force Generation: Provide high force output relative to their size, making them suitable for heavy-duty applications.

3. Controlled Movement: Offer precise control over speed, position, and force during operation.

4. Versatility: Adaptability to different environments and conditions, including high temperatures, corrosive atmospheres, and heavy loads.

Types of Hydraulic Cylinders:

1. Single-Acting Cylinders:

  - Operate in one direction, relying on hydraulic pressure to extend the piston rod. Return movement is typically achieved by a spring or gravitational force.

2. Double-Acting Cylinders:

  - Utilize hydraulic pressure to extend and retract the piston rod, providing force in both directions.

3. Telescopic Cylinders:

  - Consist of nested stages or sleeves that allow for a longer stroke length in a compact design. Used in applications where space is limited but a long stroke is required.

4. Tie-Rod Cylinders:

  - Constructed with tie rods that hold the end caps and cylinder barrel together. Common in industrial settings where heavy loads and high pressure are typical.

5. Welded Cylinders:

  - Have end caps welded directly to the cylinder barrel, providing a robust and leak-resistant design suitable for demanding applications.

Applications of Hydraulic Cylinders:

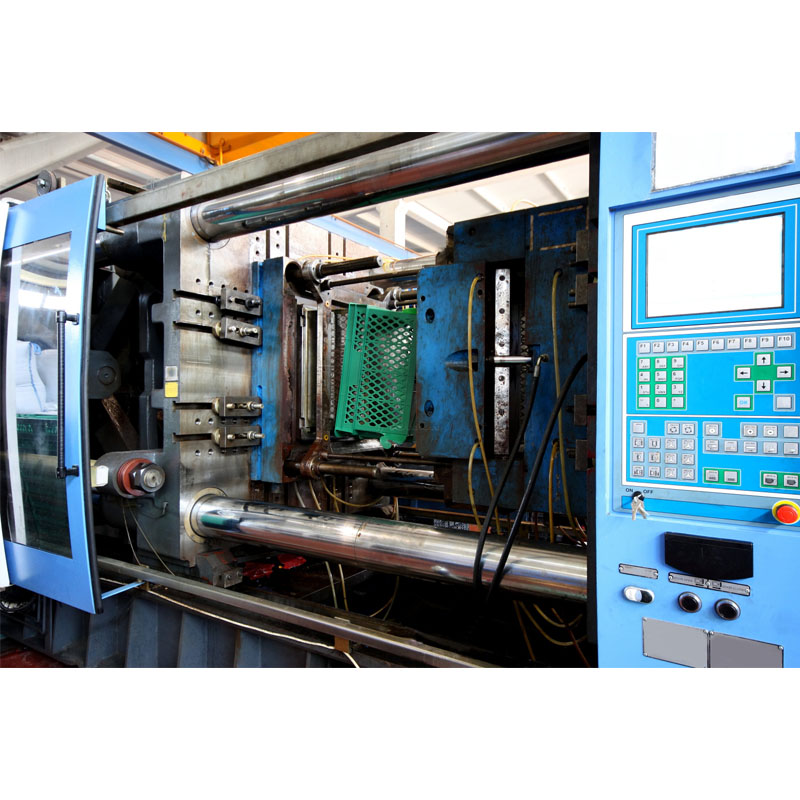

- Manufacturing: Used in machinery such as presses, stamping machines, injection molding machines, and metal forming equipment.

- Construction: Employed in cranes, excavators, loaders, and bulldozers for lifting, digging, and material handling tasks.

- Agriculture: Applied in tractors, harvesters, and agricultural machinery for functions like lifting, tilting, and steering.

- Mining: Utilized in drilling rigs, hydraulic shovels, and haul trucks for excavating and transporting minerals.

- Automotive: Found in vehicle lifts, presses, and assembly lines for manufacturing and maintenance processes.

Considerations:

- Operating Conditions: Select cylinders rated for the specific pressure, temperature, and environmental conditions of the application.

- Maintenance: Regular inspection and lubrication to ensure optimal performance and extend cylinder life.

- Safety: Proper installation and operation to prevent accidents and ensure workplace safety.

- Customization: Options for customization include rod coatings, seals, mounting styles, and special materials to meet unique application requirements.

Future Trends:

- Smart Technology Integration: Incorporation of sensors for condition monitoring, predictive maintenance, and remote diagnostics.

- Energy Efficiency: Development of hydraulic systems with improved energy recovery and efficiency to reduce environmental impact.

- Material Advancements: Use of lightweight materials and advanced alloys to enhance performance and durability.

Industrial engineering hydraulic cylinders are critical components in various sectors, providing robust and reliable force generation and motion control capabilities. Understanding their types, applications, and operational considerations is essential for selecting the right cylinder for specific industrial needs.
